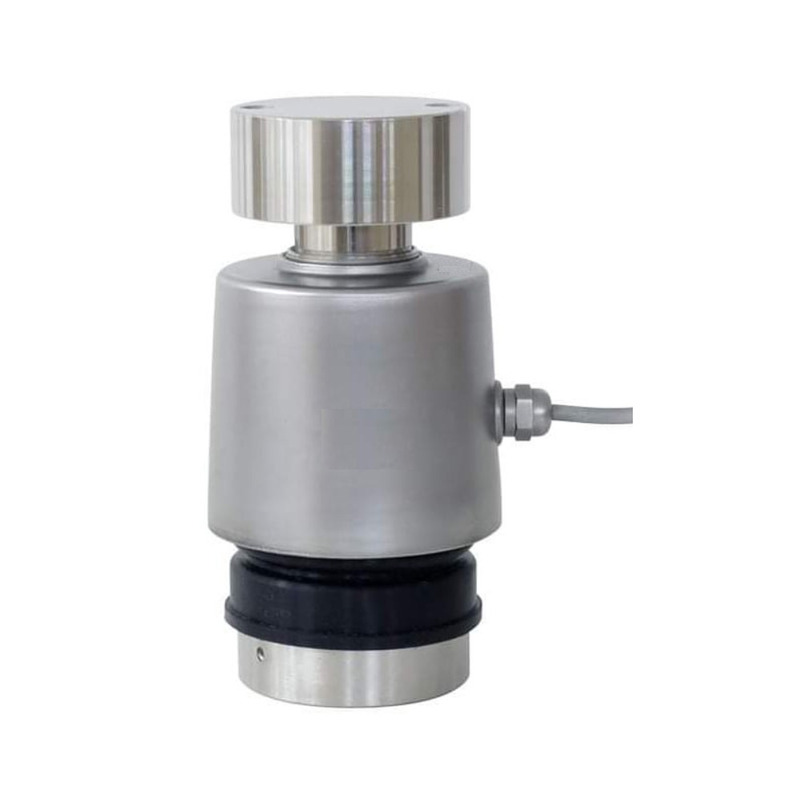

Truck Scale Column Load Cell HCLC (Flintec RC3) for Truck Scale

1.0 Pieces
MOQ
Truck Scale Column Load Cell HCLC (Flintec RC3) for Truck Scale
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: HCLC
Type: Load Cell
Usage: Truck scale
Theory: Resistance seneor
Output: Analog signal
Description: Weighing load cell
Rated Load: 30t~40t
Accuracy: 0.03%F.S
Rated output: 2.0±0.002 mV/V
Input resistance: 1150±50Ω
Water proof: IP68
Output resistance: 1003±5Ω
Material: Alloy Steel
Insulation resistance: ≥5000MΩ/50V DC
Warranty: 1 Year
Información básica
Model Number: HCLC
Pago y Envío Términos
Packaging Details: Neutral packing or according to customers' requirements for Self-aligning column load cell HC16 10t~50t for truck scale
Supply Ability: 500 Piece/Pieces per Day Self-aligning Column Load Cell HC16(keli ZSFY)10t~50t
Descripción de producto





High Precision Flintec RC3 Load Cell for Truck Scales



FEATURES

1.Capacities: 30, 40t;

2.Self-aligning,Alloy steel single coulmn;

3.Hermetically sealed IP68;

4.Built-in surge protection tubes;

5.Interchangeable with Flintec RC3;



DESCRIPTION

The HCLC is a single column,alloy steel compression load cell.

This product is suitable for use in truck scale, road and rail weighbridge and process weighing applications.

The welded construction and built-in surge protection ensure that this product can be used successfully in harsh environments.



OUTLINE DIMENSIONS(mm)









SPECIFICATIONS



From 30t to 40t
Total Error <±0.03 %F.S
Repeatability Error <±0.03 %F.S
Creep Error over 30 min. <±0.03 %F.S
Rated output 2.0±0.002 mV/V
Zero balance ±1 %F.S
Zero shift after loading <±0.05 %F.S
Temperature effect on output <±0.02 %F.S/10℃
Temperature effect on zero <±0.02 %F.S/10℃
Reference temperature  23 ℃
Temperature Range,compensated -10…+40 ℃
Operating Temperature Range -30…+70 ℃
Storage Temperature Range -50…+85 ℃
Input resistance 1150±50 Ω
Output resistance 1003±5 Ω
Insulation resistance(50V) 5000 MΩ
Recommend excitation voltage 10 V DC
Maximum excitation voltage  3...15 V DC
Safe load limit 150 %F.S
Ultimate overload 300 %F.S
Cable 12 m
Sealing IP68



Note: FSO-Full Scale Output

All specifications listed subject to change without notice.
