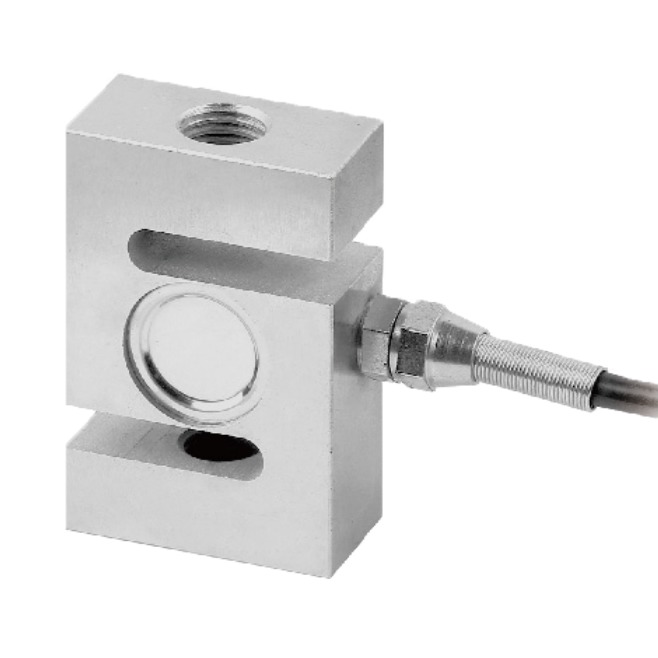

S beam load cell weighing equipment packaging scale compression and tension

1.0 Pieces
MOQ
S beam load cell weighing equipment packaging scale compression and tension
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: SA
Type: Load Cell
Usage: Force Sensor
Theory: strain gauge
Output: 2.0mv/v
Description: SA S beam load cell
Capacity: 30kg~2t
Rated output-R.O.: 2.0 mV/V
Zero balance: 1.0 ±% of rated output
Non linearity: 0.05 ±% of rated output
Hysteresis: 0.05 ±% of rated output
Non-repeatability: 0.02 ±% of rated output
Temperature effect on sensitivity: 0.011±% of rated output/℃
Operating temperature range: -20 to +60 ℃
Safe overload: 150 % of R.C
Ultimate overload: 200 % of R.C
Información básica
Model Number: SA
Pago y Envío Términos
Packaging Details: Carton, Paper with foamed plastsic
Supply Ability: 10000 Piece/Pieces per Month
Descripción de producto
Product Description

SA

Features:
★capacities from 20kg to 10t
★alloy steel construction
★protection class IP67
★loading for compression and tension

Applications:
automation control equipment
★weighing equipment
★hook scale
model
mm
L
W
D
D1
M


SA1
30/50/100/200/300kg
76
56
20
24
M12*1.75
500kg
76
56
20
/
M12*1.75
700kg/800kg/1t/1.2t
76
56
25
/
M16*2/1.5
1.5/2t
82
56
28
/
M16*2/1.5

SA2
0.5/1t
76
56
25
/
M16*2
1.5/2t
82
56
28
/
M16*2
WE PROVIDE CUSTOMIZATION FOR YOUR OWN NEEDS.
Specification
Model
SA

Accuracy class
C3

Capacities
30kg~2t
kg/t
Full scale output(FS)
2.0±0.004
mV/V
Non-linearity
≤±0.05
%FS
Hysteresis
≤±0.05
%FS
Non- repeatability
≤±0.03
%FS
Creep error (30 minutes)
≤±0.016
%FS
Zero Balance
±1.0
mV/V
Temperature effect on sensitivity
≤±0.011
%FS/10℃
Compensated temperature range
-20~+60
Operating temperature range
-35~+70
Input resistance
380±20
Output resistance
352±2
Insulation resistance (50VDC)
≥5000
MΩ
Operating Voltage
5~12(DC)
V
Safe overload limit
150
%FS
Ultimate load
200
%FS
Cable length
3
m
protection class
IP67

Element material
Alloy Steel

Related Products
Equipment

Strain gauge under dust-free condition

Digital calibration test

Dust-free and constant temperature&humidity Room

TC0 SPAN testing machine

Our Company

Anhui Zhimin electrical technology CO.,Ltd is a fast growing domestic leader in strain gauge transducers for multiple application in force, weighing, load limiting, torques and other specialized manufacturing(oil, space, laboratories,, multiple-dimension etc. ). An unrelenting strategic focus on our customers' needs and a succession of technological challenges supported by research and significant development, by continuous innovation and improving our traducers, and finally by an organization recognized by the highest quality standards drives our culture.

Founded in 2000, ZM has served and established good relationship with a number of customers in almost all the automation areas such as industries of metallurgy, chemicals, architecture, building materials, lifting, transportation and aviation. The company was awarded the title of 'high and new technology industries' by government in 2018 and successfully listed on the stock of Anhui innovation board in 2019(Code:630129).

Certifications
Packing & Delivery

♦ Packing: packing materials are eco-friendly and really protect your product well. Every item has their own independent packing with filter of foamed plastic.

♦ Delivery: A wide range of options : Express(Fedex, DHL, TNT, EMS, UPS etc.) air and shipping

FAQ

1.What information  do I need to provide before placing an order?

The size, capacity and usage are necessary. Besides, we may need some other parameters.


2.Can you design and customize products for me?

Definitely, we are extremely good at customizing various load cells. If you have any needs, please tell us. However, the customized products would postpone shipping time.


3.How long is your warranty period?

Our warranty period is 12 months.


4.I am the buyer purchasing  a large number of load cells every year, can I visit your company and discuss in person?

We are delighted to meet you in China and really welcome you to communicate technical questions with us. If your coming could establish cooperative relationship, we are also delighted to pay travel expense for you..
